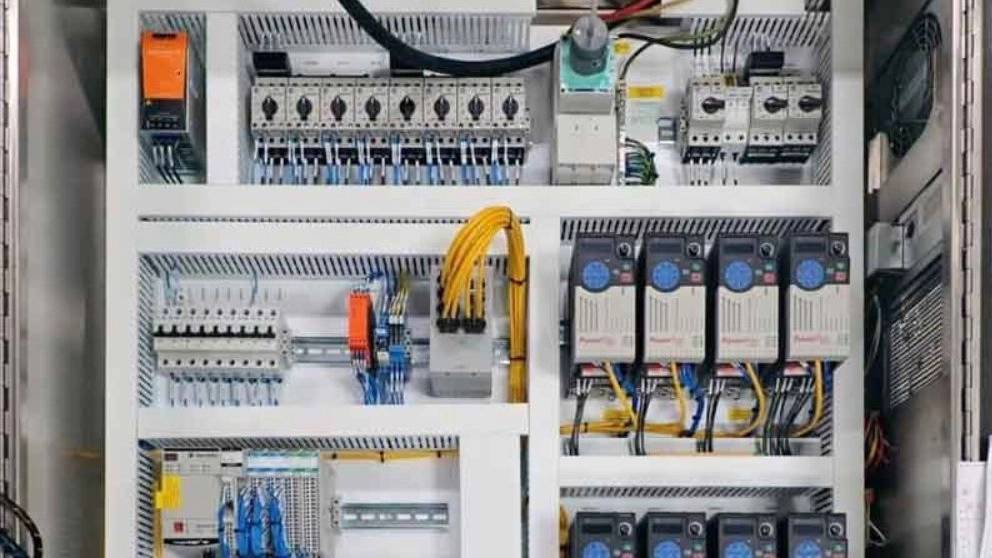

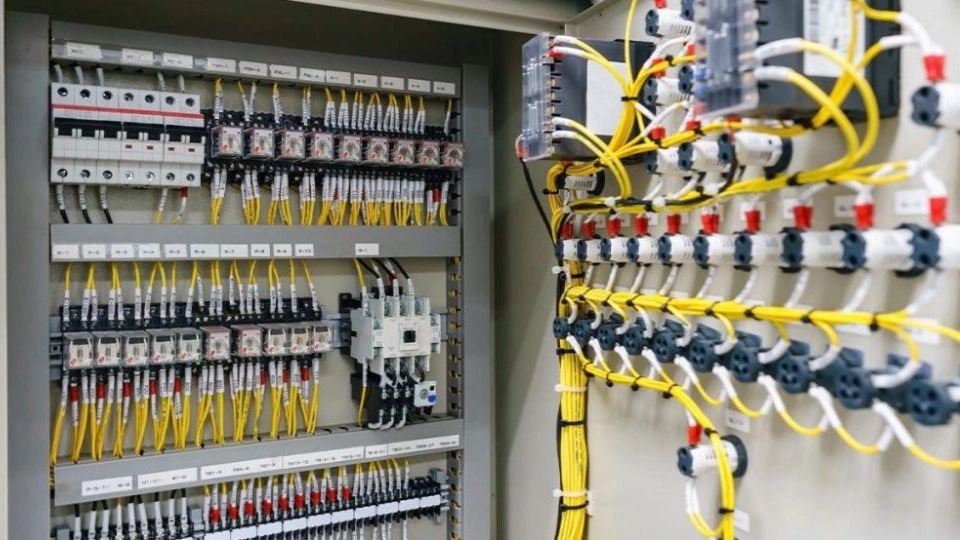

Types of Industrial Power Panel
Industrial switchboards are classified into different types in terms of structure, which we will introduce below.
Metal Enclosed panels: These panels have a metal enclosure inside which all equipment Electric includes switches, current and voltage transformers, measuring devices, busbars are installed. Metal Enclosed panels are divided into two categories: Metal Clad Panels and Compartment Type Panels.
Metal Clad Panels: In the Metal Clad industrial switchboard, there are different compartments separately so that when a fault occurs in one compartment, the other compartment Compartment Type panels: These panels are another type of Metal Enclose switchboards, unlike Metal Clad industrial switchboards, the compartments are connected to each other and not separated from each other.
Withdrawable electrical panels: Industrial retractable electrical panels are usually used to control motors and have greater safety and easier service.
Rack electrical panels: The shape of the rack electrical panel It is in the form of a shelf and the installation of all kinds of control, telecommunication, measurement and electronic enclosures is on this switchboard. It has a high price. It is visible behind the equipment in the Swing switchboard and it is easy to access them.
Industrial Power Panel Standards
Industrial switchboard standards have been developed and determined in various fields such as construction, implementation, design, transportation, storage, installation, repair and relocation. The general standards for electrical panels and electronics industries are related to IEC, IEEE, and ANSI standards, and the best and most complete standard for medium and low voltage electrical panels is the IEC standard. It should be considered for industrial electrical panels:
Industrial electrical box should be made according to the need.
Industrial panels should be selected based on different ratings and principles should be observed for them.
After the industrial panel is made, it is necessary to take the performance tests of the panel.
The panel should be transported in the right ways.
Necessary information should be given to the buyer about the industrial electrical box after shipping.
Each industrial electrical panel requires specific installation and maintenance that must be observed.
